TapeMeasure's Parts
3D models of parts and accessories for TapeMeasure
When designing Payload for TapeMearsure, it is recommended to look at Boson Dynamics's documentation on Mounting Rails
If designing equipment to be secured between both rails hole center spacing should be 160mm.

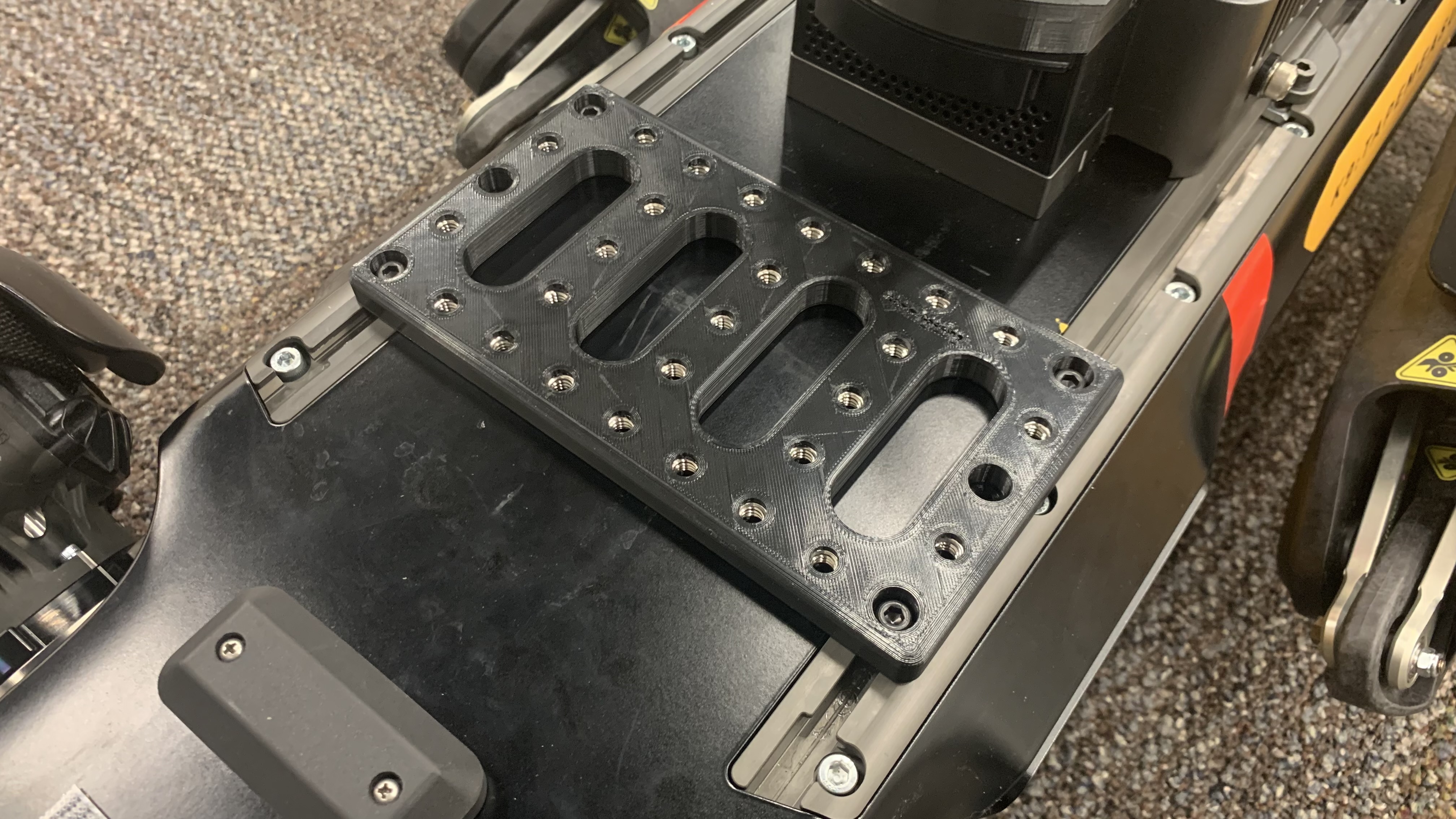

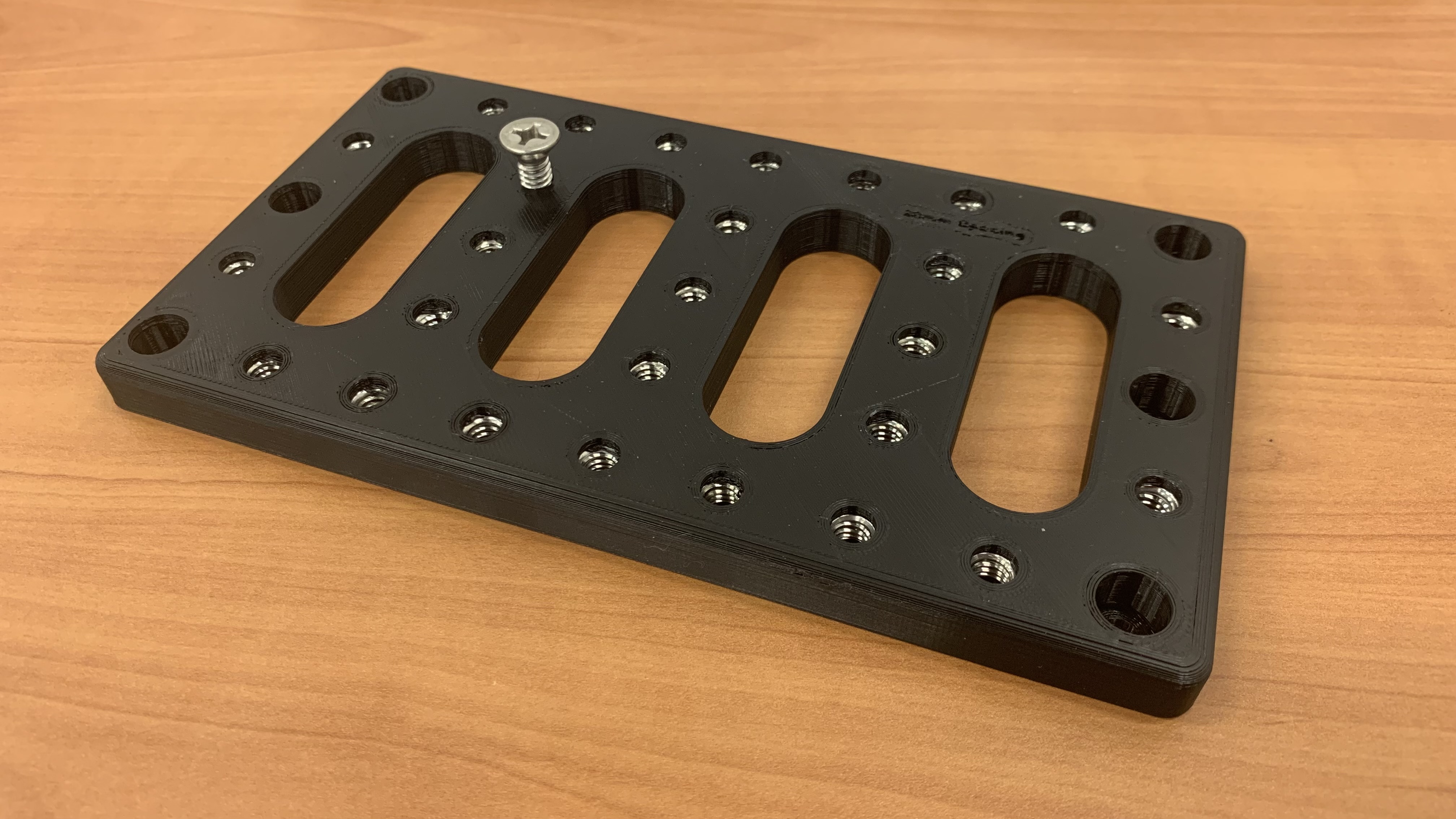

TapeMeasure's Universal Mounting Plate
Specs (Measure the pockets to make sure nuts & bolts will fit)
- Nut & Bolt- 1/4” - 20
- Mounting point spacing 20 mm
- x27 Mounting points
- Plate’s mounting point x6 160mm (aligned for Spot’s T-slots)
- Overall Dimensions 180mm x 100 x 10mm
Models are available under attachments to the left to with the link below
Additional accessories
Print settings
When slicing the model make sure to have a layer pause before the pockets are sealed to place 1/4-20 bolts. Spot Universal Mounting Plate.3mf should have a layer pause set when using PrusaSlicer and the file is "opened as project".
Photos of accessories
Tail Project
Documentation for Tapemeasure's Tail Project
Speaker Project
Documentations and CAD files for Speaker Box made for Tapemeasure
Speaker Clip
Speaker Clip is designed for a sound speaker to mount with a t-slot system. The file is available with an attachment to the left.
SpeakerMountpartFemale.stl and SpeakerMountpartmale.stl works together to hold sound speaker to Tapemeasure.
Speaker Box 2023
The speaker was made in two parts and mount two:
Files are available with the Attachments to the left
