11/08/2024

Meeting goals

Get ArduPilot up and running on Cube

Meeting Notes

What was completed?

• Installed latest ArduPilot firmware to Cube
  • Issue with flashing firmware on QGC (Ubuntu), worked with APM Mission Planner (Windows)
  • Once firmware updated, the FC was able to communicate with QGC

  • Experimented with calibrating accelerometer and compass

• Telemetry Radio Manual

What is in progress?

• Looking in to telemetry radio - Matthew
• Goal is to have software fully integrated by the end of semester
  • Working control (Thrust & Steering)
    Working w/ RC Controller
  • Working GPS
    Working Telemetry Radio

What is the goal for the next meeting?

11/12/2024

Meeting goals

Meeting Notes

What was completed?

• Issue w/ QGC finding firmware seems to be fixed, able to flash autopilot firmware from QGC
• Got RC Receiver working by connecting receiber to RCIN pins on controller and forcing SBUS protocol in ArduPilot parameters

• Configured motor parameters, servo functions
  • Servo 1 - Steering
  • Servo 3 - Throttle

What is in progress?

•


What is the goal for the next meeting?

• Get PWM Control working



11/15/2024

Meeting goals

• Get PWM Control working with flight controller to control motor

Meeting Notes

What was completed?

• Researched GPS modules, trying to find one with the right connector and protocol to be recognized by AutoPilot
• Configured PWM output and got it working. Receiver is now controlling motor

What is in progress?

• Finalizing GPS modules pick
• Getting telemetry radio working

What is the goal for the next meeting?

• Get telemetry radio connection between ground station and flight controller



1/14/2025

Meeting goals

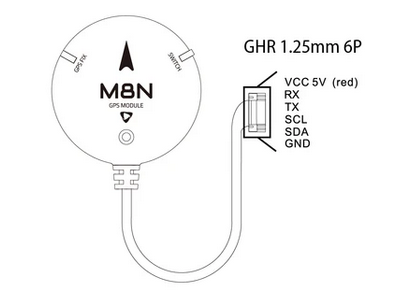

• Work on getting M8N GPS Module Connected

Meeting Notes

What was completed?

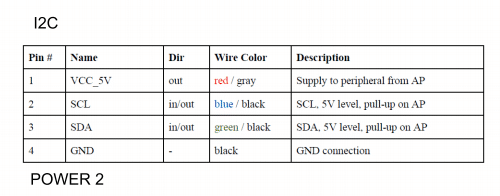

• Resoldered the wires on the GPS using these colors to connect it to I2C:

  •

  • Did not work

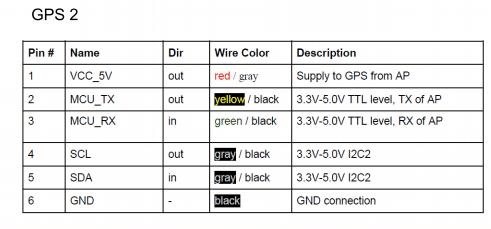

• I believe it should be this to connect it to the GPS 2 Module but unsure of how the colors line up:

  •

  •

What is in progress?

What is the goal for the next meeting?

• Resolder the 6 wires onto an 8 pin connector and test the GPS on the GPS2 Port
  • If this does not work, pick out another GPS and order
